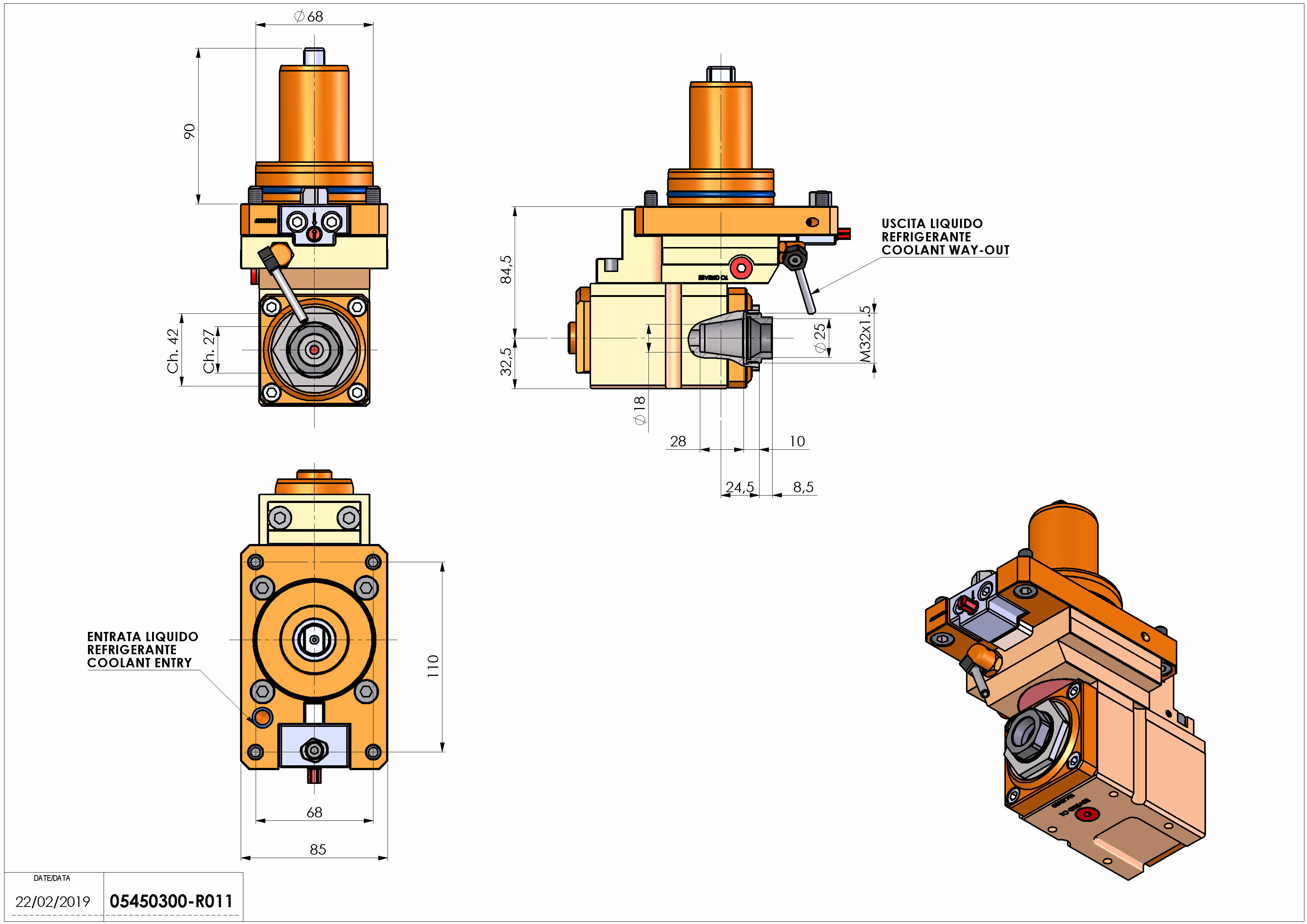

0005450300 – LT-A D68 ER25F OFS1:1.75 H84.5

Type	Tool holder offset angle 90°
Shank	CYLINDRICAL SHANK 68
TOOL OUTPUT	Collet nut ER 25 F – internal nut
COOLANT	External coolant
Direction of rotation
Max speed [rpm]	10000
Max torque [Nm]	25
Ratio	1:1,75
H [mm]	84,5
H1 [mm]	32,5
ACCESSORIES	N.D.
NOTES	N.D.
MOUNTING TIPS	Secondary spindle only

Product details Request offer

Available for 21 machines

MAZAK – MZ68B/C — (Star-Type 12ST – D68)

MAZAK – QT 200, 250 M/MY/MS/MSY — (Star-Type 16ST – D68)

MAZAK – QT,QTS,100M/MY/MSY — (Star-Type 12ST – D68)

MAZAK – QT-Ez 8-12 M/MY/MSY — (Star-Type 12ST – D68)

MAZAK – QTC 200 M — (Star-Type 12ST – D68)

MAZAK – QTC 200 MS — (Star-Type 12ST – D68)

MAZAK – QTC 200 MSY — (Star-Type 12ST – D68)

MAZAK – QTC 200 MY — (Star-Type 12ST – D68)

MAZAK – QTC 300 M — (Star-Type 12ST – D68)

MAZAK – QTC 300 MS — (Star-Type 12ST – D68)

MAZAK – QTC 300 MSY — (Star-Type 12ST – D68)

MAZAK – QTC 300 MY — (Star-Type 12ST – D68)

MAZAK – QTC-QTE-QTU 100-350 M — (Star-Type 12ST – D68)

MAZAK – QTC-QTE-QTU 100-350 MS — (Star-Type 12ST – D68)

MAZAK – QTC-QTE-QTU 100-350 MSY — (Star-Type 12ST – D68)

MAZAK – QTC-QTE-QTU 100-350 MY — (Star-Type 12ST – D68)

MAZAK – QTN 250 M/MY — (Star-Type 12ST – D68)

MAZAK – QTS 150M — (Star-Type 12ST – D68)

MAZAK – QTS 200M — (Star-Type 12ST – D68)

MAZAK – QTS 250M — (Star-Type 12ST – D68)

MAZAK – QUICK TURN 200MA — (Star-Type 12ST – D68)
