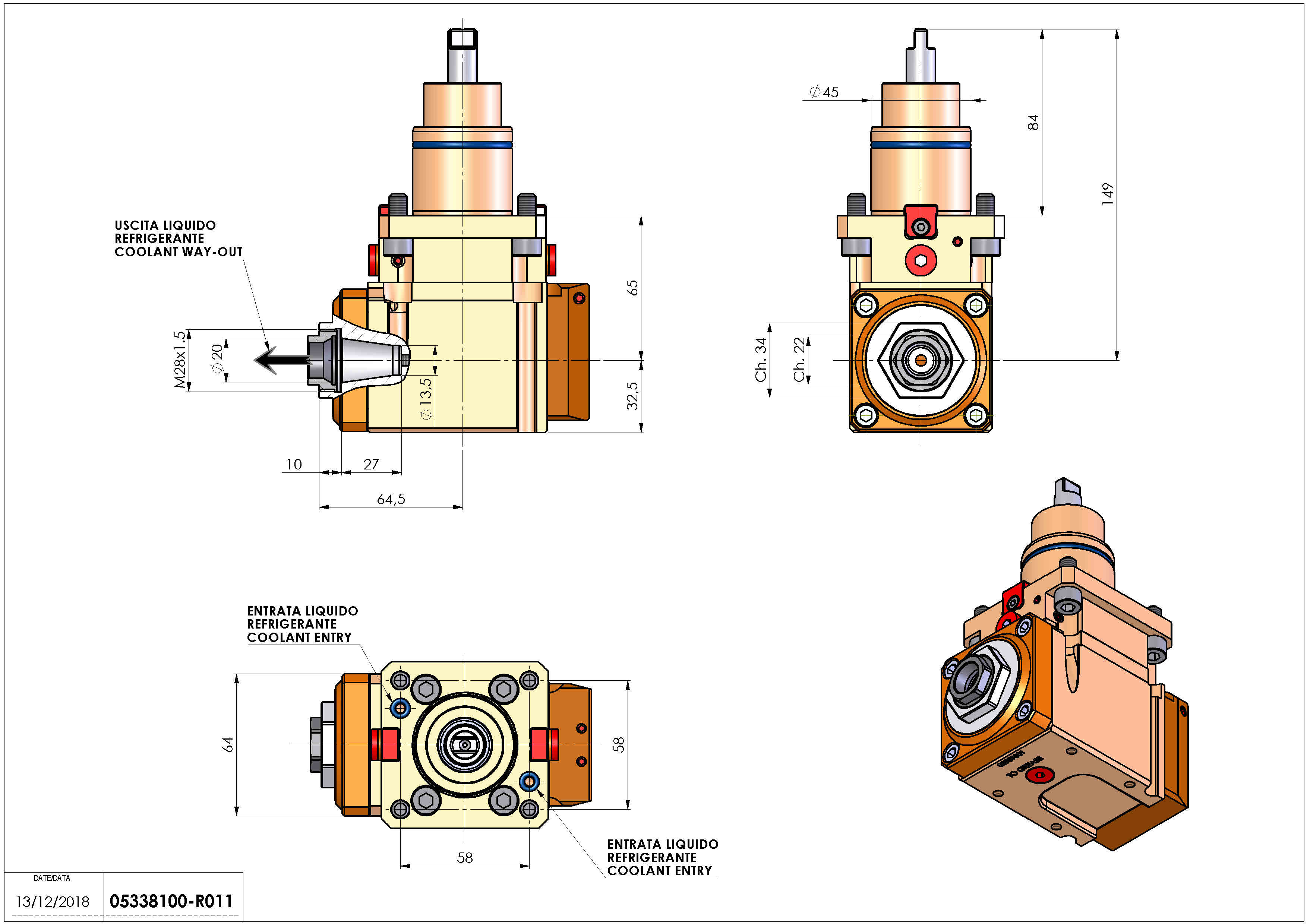

0005338100 – LT-A BMT45 ER20F LR RF H65
Type Tool holder angle 90°
Shank BMT 45
TOOL OUTPUT Collet nut ER 20 F – internal nut
COOLANT Internal coolant
Direction of rotation
Max speed [rpm] 6000
Max torque [Nm] 25
Ratio 1:1
H [mm] 65
H1 [mm] 32.5
Max pressure [bar] 20
ACCESSORIES N.D.
NOTES N.D.
MOUNTING TIPS

Main and secondary spindle
