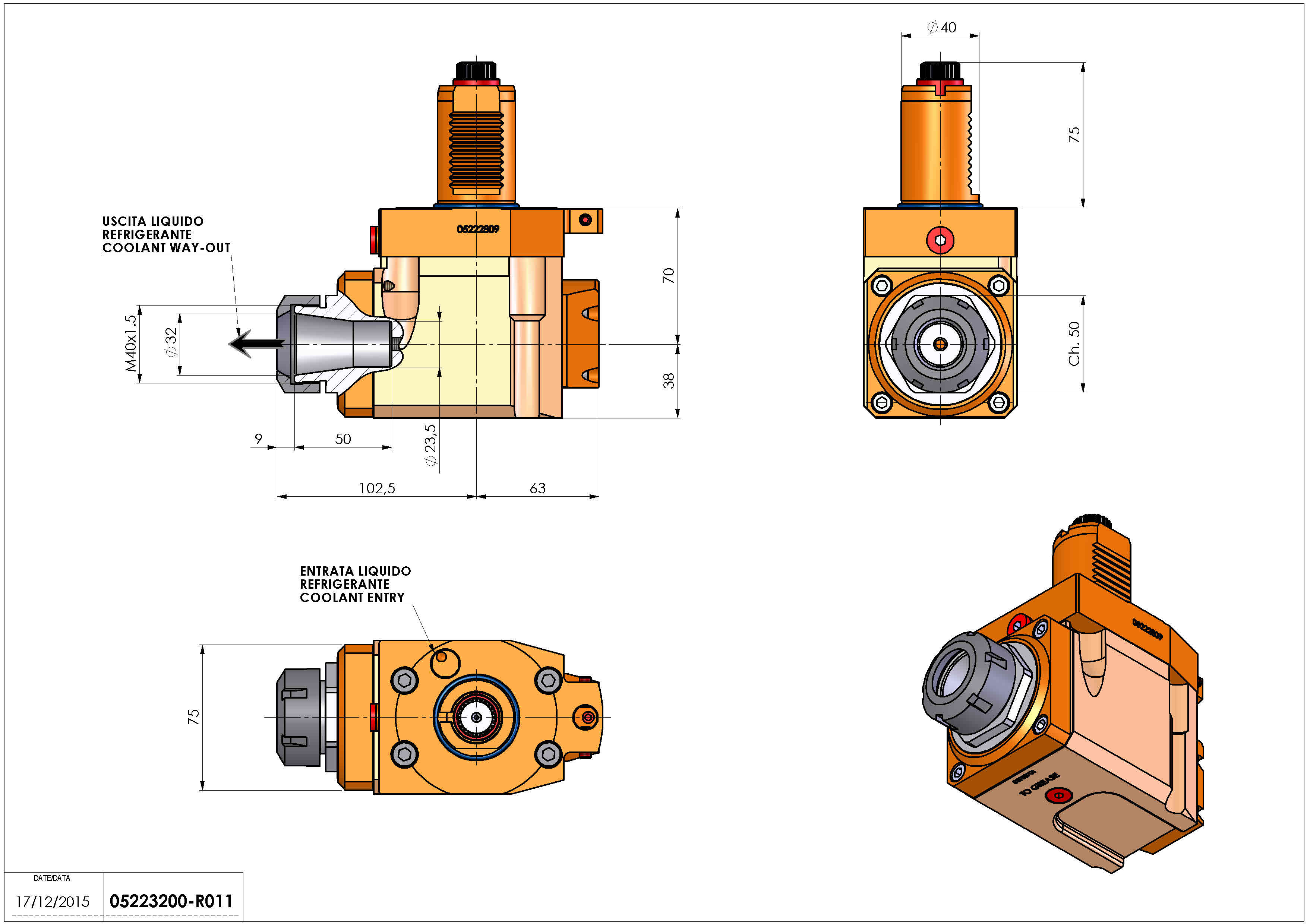

0005223200 – LT-A VDI40 ER32 RF LH70 5480SA
Type Tool holder angle 90°
Shank VDI 40
TOOL OUTPUT Collet nut ER 32
COOLANT Internal coolant
Direction of rotation
Max speed [rpm] 6000
Max torque [Nm] 63
Ratio 1:1
H [mm] 70
H1 [mm] 38
Max pressure [bar] 20
ACCESSORIES N.D.
NOTES N.D.
MOUNTING TIPS

Verify VDI position betw. turret and live tool

Product details Request offer

Available for 24 machines

DMG MORI – CTV 160 — (Star-Type 12ST DIN 5480 – VDI 40)

DMG MORI – CTV 200 — (Star-Type 12ST DIN 5480 – VDI 40)

DMG MORI – CTV 250 — (Star-Type 12ST DIN 5480 – VDI 40)

DMG MORI – CTX 410 — (Star-Type 12ST DIN 5480 – VDI 40)

DMG MORI – CTX 420 LINEAR — (Star-Type 12ST DIN 5480 – VDI 40)

DMG MORI – CTX 510 ECOLINE — (Star-Type 12ST DIN 5480 – VDI 40)

DMG MORI – CTX 520 LINEAR — (Star-Type 12ST DIN 5480 – VDI 40)

DMG MORI – CTX BETA 1250 — (Star-Type 12ST DIN 5480 – VDI 40)

DMG MORI – CTX BETA 500 — (Star-Type 12ST DIN 5480 – VDI 40)

DMG MORI – CTX BETA 800 — (Star-Type 12ST DIN 5480 – VDI 40)

DMG MORI – GMX 250 LINEAR — (Star-Type 12ST DIN 5480 – VDI 40)

DMG MORI – GMX 300 — (Star-Type 12ST DIN 5480 – VDI 40)

DMG MORI – GMX 400 — (Star-Type 12ST DIN 5480 – VDI 40)

DMG MORI – GMX 500 — (Star-Type 12ST DIN 5480 – VDI 40)

DMG MORI – TWIN 102 — (Star-Type 12ST DIN 5480 – VDI 40)

DMG MORI – TWIN 500 — (Star-Type 12ST DIN 5480 – VDI 40)

HYUNDAI WIA – L250 SY — (Disk-Type 12ST DIN 5482 – VDI 40)

HYUNDAI WIA – L250 Y — (Disk-Type 12ST DIN 5482 – VDI 40)

MONFORTS – DNC 400-5 — (Star-Type 12ST DIN 5480 – VDI 40)

MONFORTS – DNC 5 — (Star-Type 12ST DIN 5480 – VDI 40)

MONFORTS – RNC 400DT — (Disk-Type 12ST DIN 5480 – VDI 40)

MONFORTS – RNC 500DT — (Disk-Type 12ST DIN 5480 – VDI 40)

MONFORTS – RNC 600DT — (Disk-Type 12ST DIN 5480 – VDI 40)

SAUTER – SAUTER — (Star-Type 12ST DIN 5480 – VDI 40)
