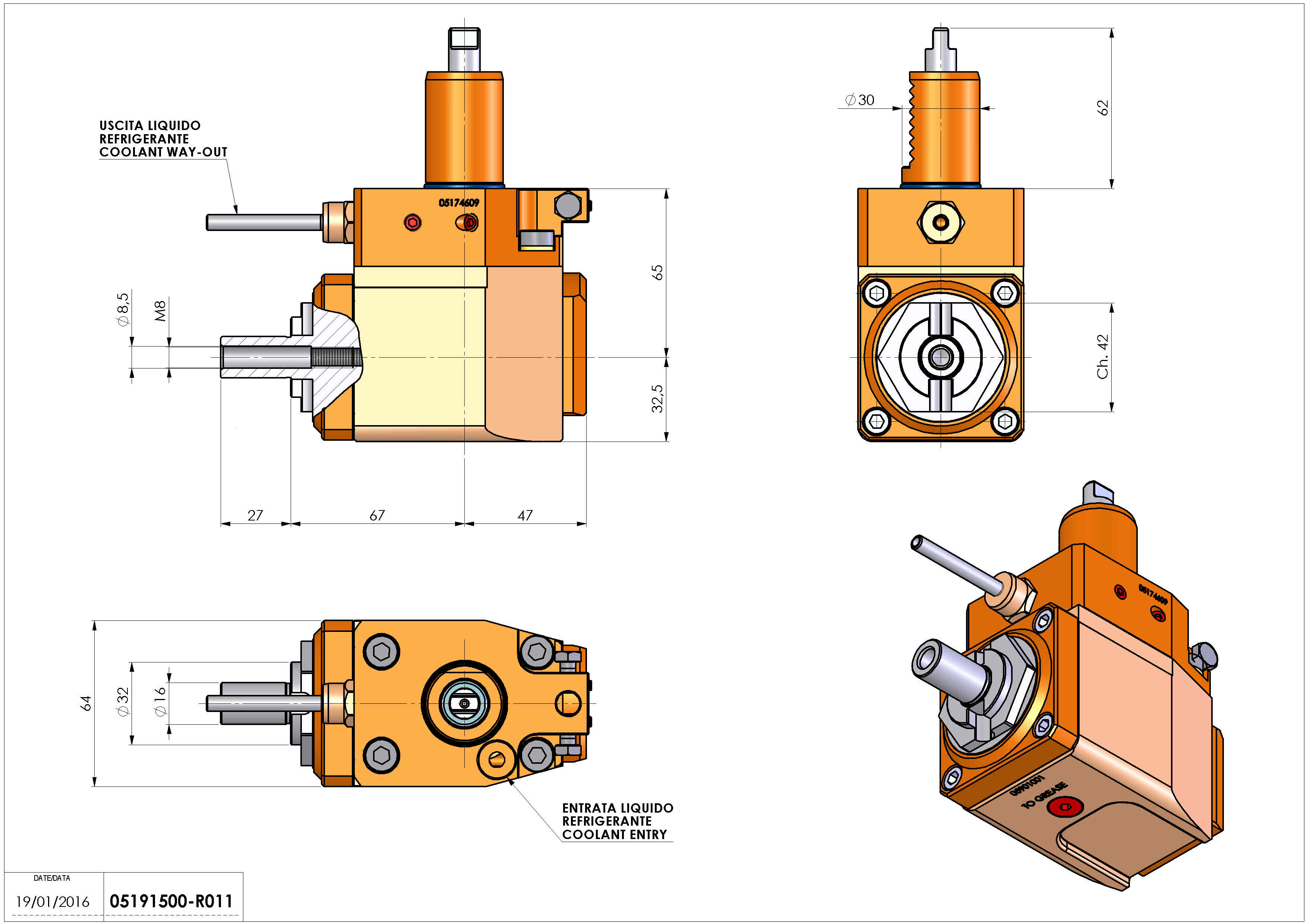

0005191500 – LT-A VDI30 DIN138-16LH651809DP

Type	Tool holder angle 90°
Shank	VDI 30
TOOL OUTPUT	Shell-Mill DIN138 16
COOLANT	External coolant
Direction of rotation
Max speed [rpm]	6000
Max torque [Nm]	30
Ratio	1:1
H [mm]	65
H1 [mm]	32,5
ACCESSORIES	N.D.
NOTES	N.D.
MOUNTING TIPS	Verify VDI position betw. turret and live tool

Product details Request offer

Available for 18 machines

DUPLOMATIC – DN 160 — (Disk-Type 12ST DIN 1809 – VDI 30)

DUPLOMATIC – DN 160 — (Disk-Type 8ST DIN 1809 – VDI 30)

DUPLOMATIC – DN 2 160 — (Disk-Type 6+6ST DIN 1809 – VDI 30)

DUPLOMATIC – DN Y 160 — (Disk-Type 12ST DIN 1809 – VDI 30)

DUPLOMATIC – DN Y 160 — (Disk-Type 8ST DIN 1809 – VDI 30)

DUPLOMATIC – DN Y2 160 — (Disk-Type 6+6ST DIN 1809 – VDI 30)

MAS KOVOSVIT – SP LINE 180 — (Disk-Type 12ST DIN 1809 – VDI 30)

MAS KOVOSVIT – SP LINE 180 — (Disk-Type 8ST DIN 1809 – VDI 30)

ROMI – GL 240 M — (Disk-Type 12ST DIN 1809 – VDI 30)

ROMI – GL 240 M — (Disk-Type 8ST DIN 1809 – VDI 30)

SHIMADA – 2 SI 6/8 — (Disk-Type 12ST DIN 1809 – VDI 30)

WEILER – DZ 42 — (Disk-Type 12ST DIN 1809 – VDI 30)

WEILER – DZ 42 — (Disk-Type 8ST DIN 1809 – VDI 30)

WEILER – DZ 65 — (Disk-Type 12ST DIN 1809 – VDI 30)

WEILER – DZ 65 — (Disk-Type 8ST DIN 1809 – VDI 30)

YCM – GT 200 MA — (Disk-Type 12ST DIN 1809 – VDI 30)

YCM – GT 200 MA — (Disk-Type 8ST DIN 1809 – VDI 30)

YCM – TC 16 — (Star-Type 12ST DIN 1809 – VDI 30)
