Do you know the code of the tool holder you are looking for?

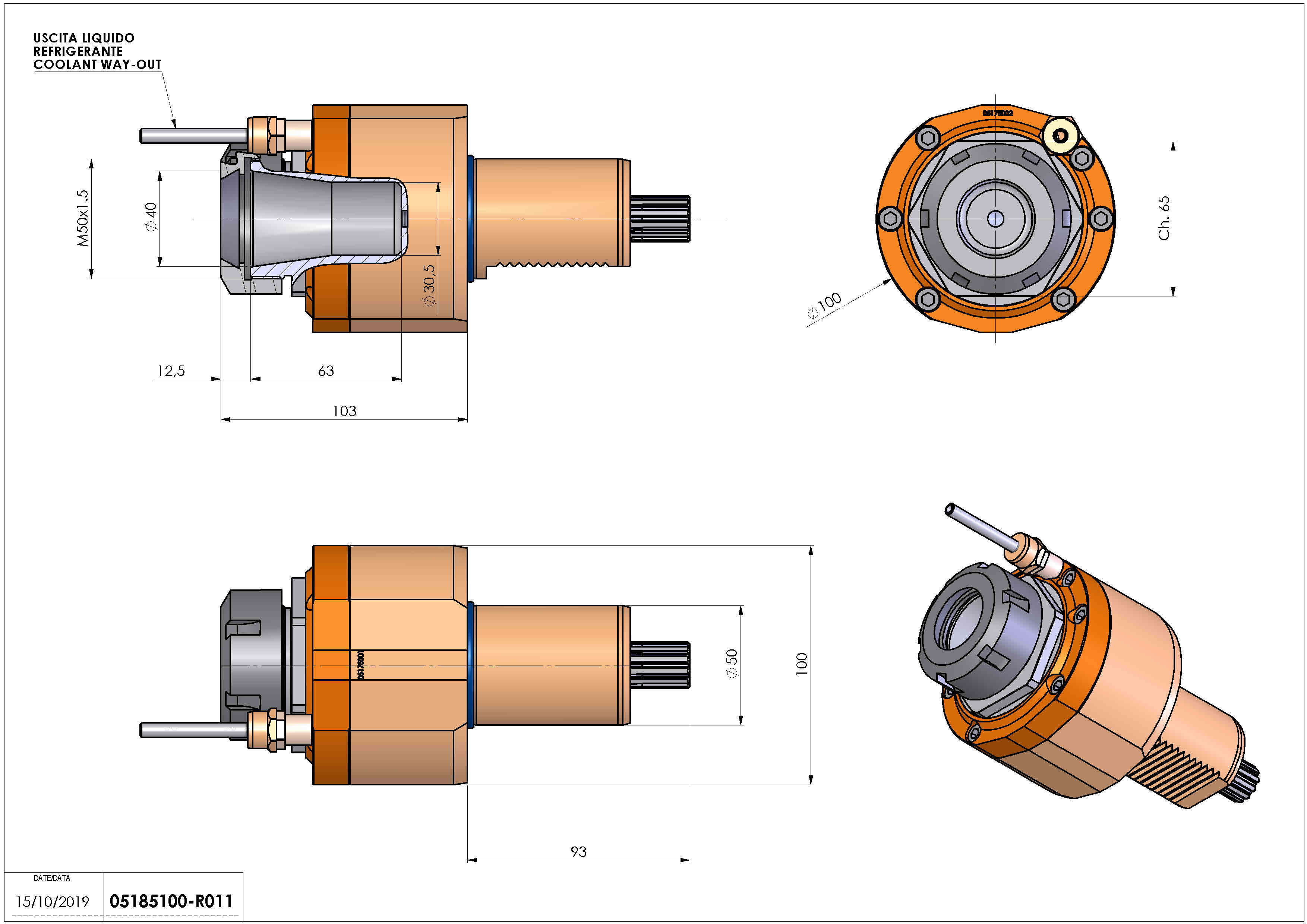

0005185100 – LT-S VDI50 ER40 H103 DIN 5482

Type	Tool holder straight
Shank	VDI 40
TOOL OUTPUT	Collet nut ER 40
COOLANT	External coolant
Direction of rotation
Max speed [rpm]	6000
Max torque [Nm]	63
Ratio	1:1
H [mm]	103
ACCESSORIES	N.D.
NOTES	N.D.
MOUNTING TIPS	Not suitable for every application, please check

Product details Request offer

Available for 14 machines

DMG MORI – CTX 400 — (Disk-Type 12ST DIN 5482 – VDI 40)

DMG MORI – CTX 500 — (Disk-Type 12ST DIN 5482 – VDI 40)

DMG MORI – GRAZIANO GR 400 C — (Disk-Type 12ST DIN 5482 – VDI 40)

HYUNDAI WIA – L210 SY — (Disk-Type 12ST DIN 5482 – VDI 40)

HYUNDAI WIA – L250 SY — (Disk-Type 12ST DIN 5482 – VDI 40)

HYUNDAI WIA – L250 Y — (Disk-Type 12ST DIN 5482 – VDI 40)

HYUNDAI WIA – SKT 250 SY — (Disk-Type 12ST DIN 5482 – VDI 40)

HYUNDAI WIA – SKT 250 Y — (Disk-Type 12ST DIN 5482 – VDI 40)

MONFORTS – RNC 4 — (Disk-Type 12ST DIN 5482 – VDI 40)

MONFORTS – RNC 400 — (Disk-Type 12ST DIN 5482 – VDI 40)

MONFORTS – RNC 5 — (Disk-Type 12ST DIN 5482 – VDI 40)

MONFORTS – RNC 500 — (Disk-Type 12ST DIN 5482 – VDI 40)

MONFORTS – RNC 600 — (Disk-Type 12ST DIN 5482 – VDI 40)

SAUTER – SAUTER — (Disk-Type 12ST DIN 5482 – VDI 40)

Datasheet
