Do you know the code of the tool holder you are looking for?

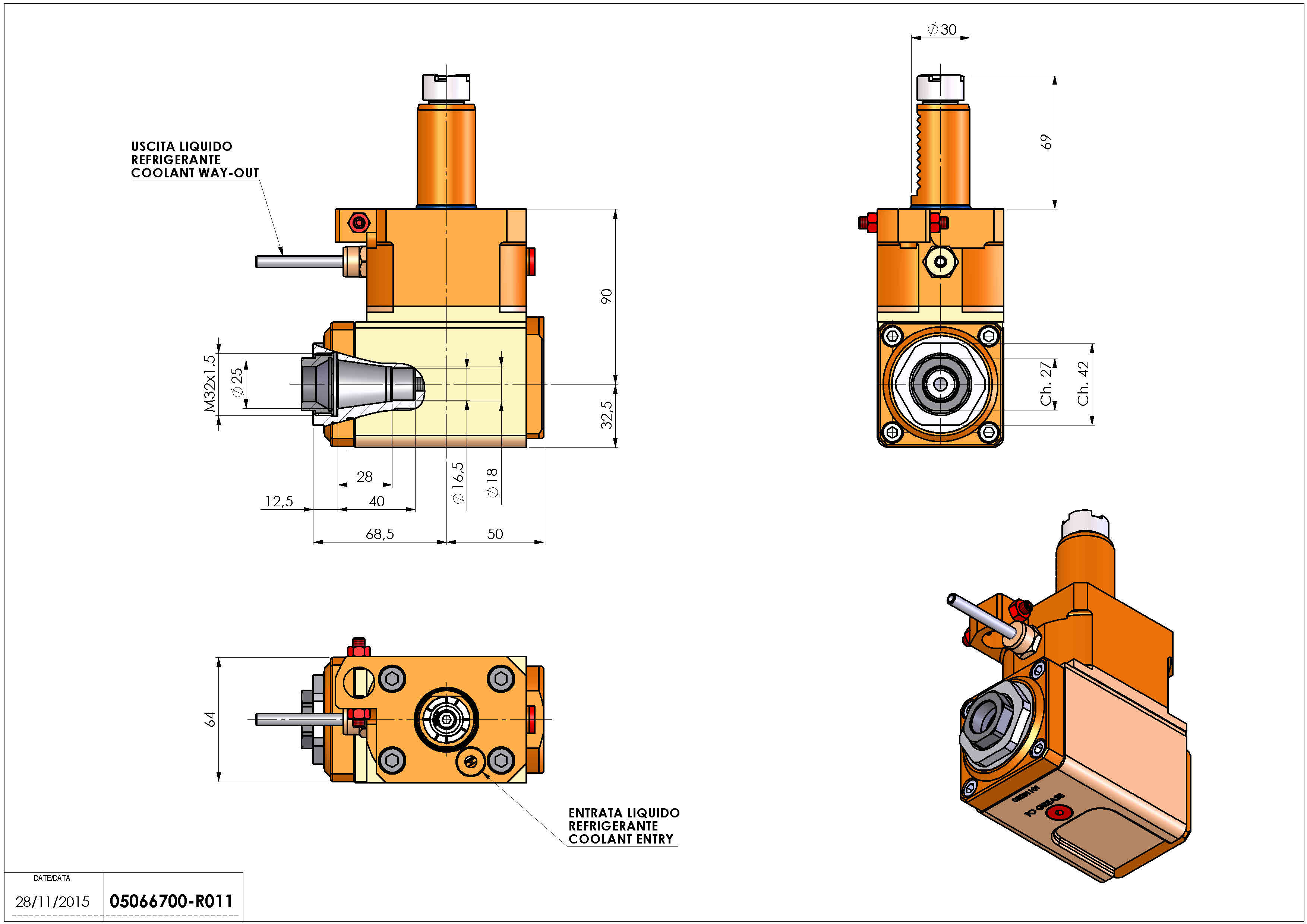

0005066700 – LT-A VDI30 ER25F L H90 OK
Type Tool holder angle 90°
Shank VDI 30
TOOL OUTPUT Collet nut ER 25 F – internal nut
COOLANT External coolant
Direction of rotation
Max speed [rpm] 6000
Max torque [Nm] 40
Ratio 1:1
H [mm] 90
H1 [mm] 32,5
ACCESSORIES N.D.
NOTES N.D.
MOUNTING TIPS

Main spindle only

Product details Request offer

Datasheet

PDF
